Smooth Sine
Solutions.

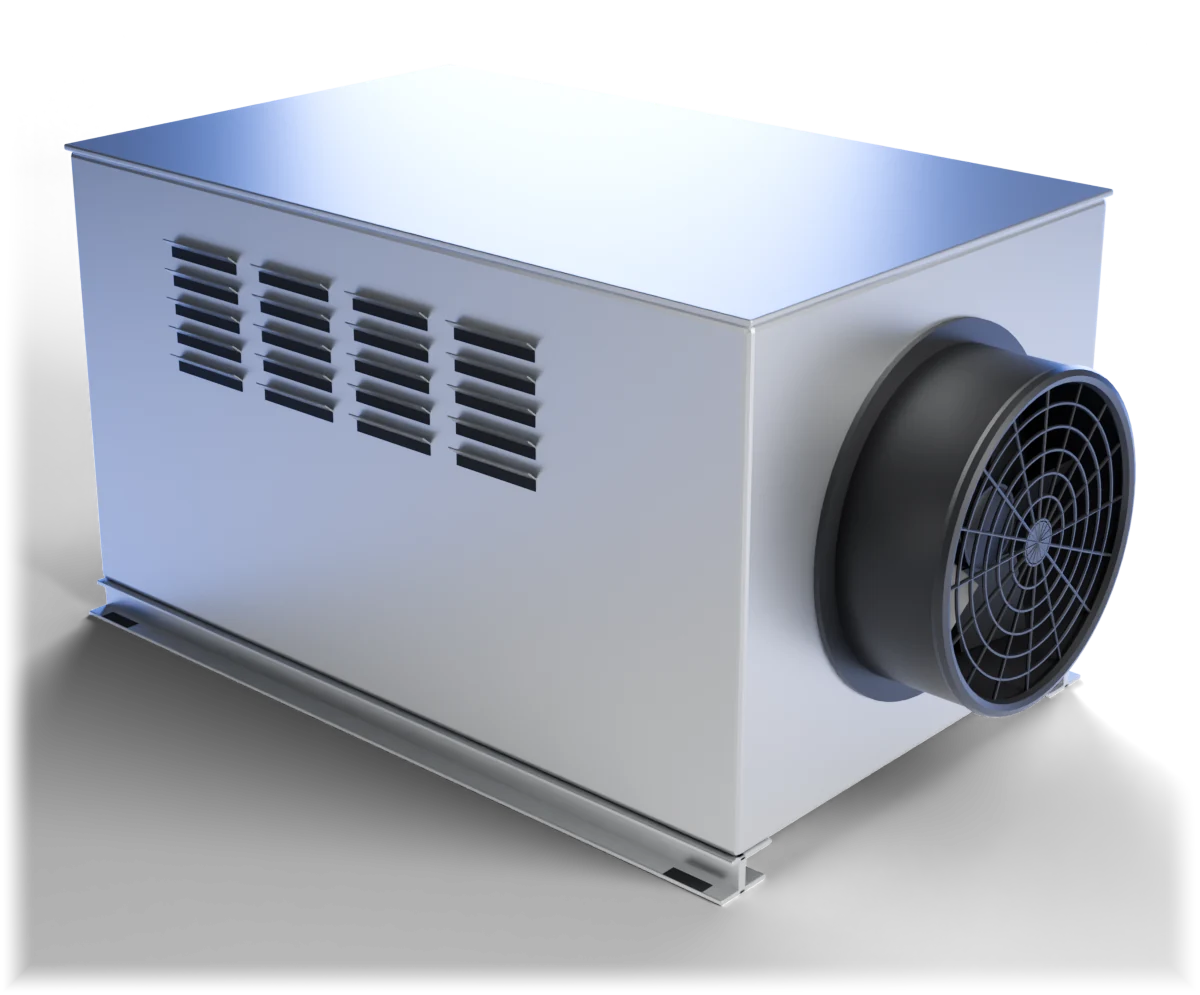

Smooth Sine Solutions supplies passive harmonic filters for six-pulse variable frequency drives: indoor units from 3 A to 480 A, and outdoor units at 400 A (SSS-HF480-400) and 900 A (SSS-HF480-900). Each quotation includes a selection against the drive the filter serves.
22
Indoor catalog ratings, 3 A to 480 A
10
Indoor frame sizes
900 A
Largest single filter
01
Selection
From the drive rating, input current, supply and the distortion target.
02
Drawings
General arrangement, base plan, schematic and field wiring with the quotation.
03
Installation details
Conduit entry, mounting and enclosure set for where the filter is going.
Send us the drive.
Drive rating, input current, voltage and how many. We'll come back with a filter selection.
