Indoor filters
Indoor
harmonic filters.
Passive filters for drives in panels and electrical rooms, wired in series ahead of the drive. Catalog ratings are at 380–415 V, 50 Hz; 440–480 V, 60 Hz versions are available on request and confirmed per selection.
- Catalog ratings
- 3 – 480 A at 400 V 50 Hz
- THDi
- 5 % or 10 %
- Enclosure
- IP20
Selection
Match the filter
to the drive.
Pick the rating at or just above the drive's input current. A larger filter on a smaller drive still works, with less harmonic reduction, so ratings are matched as closely as possible.
Ratings and frames from the manufacturer catalog at 380–415 V, 50 Hz. 440–480 V, 60 Hz versions are available on request; a 60 Hz filter is tuned differently, so the frame is confirmed in each selection. X1a and X1b are the two small X1 housings.
| Rated current (A) | Frame, THDi 5 % | Frame, THDi 10 % |
|---|---|---|
| 3 | X1a | X1a |
| 5 | X1a | X1a |
| 8 | X1b | X1b |
| 10 | X1b | X1b |
| 14 | X1 | X1 |
| 22 | X2 | X2 |
| 29 | X2 | X2 |
| 34 | X3 | X3 |
| 40 | X3 | X3 |
| 55 | X3 | X3 |
| 66 | X4 | X4 |
| 82 | X4 | X4 |
| 96 | X5 | X5 |
| 133 | X5 | X5 |
| 171 | X6 | X6 |
| 204 | X6 | X6 |
| 251 | X7 | X7 |
| 304 | X7 | X7 |
| 352 | X8 | X7 |
| 381 | X8 | X7 |
| 438 | X8 | X7 |
| 480 | X8 | X8 |
Catalog basis 380–415 V, 50 Hz.
Frames
Frame sizes.
Ten housings. The fan and terminals add to the body length; overall length is given where the catalog drawing shows it.

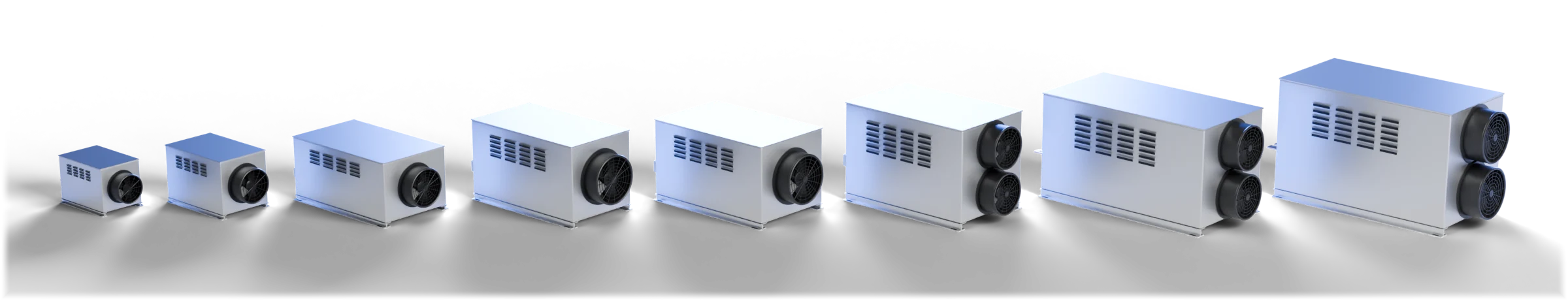

X1 to X8 to scale. Representative models built from catalog dimensions.
| Frame | Height | Front width | Width over feet | Body length | Overall length | Ratings |
|---|---|---|---|---|---|---|
| X1a | 205 [8.1] | 190.5 [7.5] | 190.5 [7.5] | 248.5 [9.8] | 306 [12.0] | 3–5 A |
| X1b | 220 [8.7] | 190.5 [7.5] | 190.5 [7.5] | 248.5 [9.8] | 306 [12.0] | 8–10 A |
| X1 | 205 [8.1] | 190.5 [7.5] | 190.5 [7.5] | 290 [11.4] | 376 [14.8] | 14 A |
| X2 | 247.5 [9.7] | 232 [9.1] | 232 [9.1] | 364 [14.3] | 450 [17.7] | 22–29 A |
| X3 | 275 [10.8] | 330 [13.0] | 378 [14.9] | 568.5 [22.4] | see drawing | 34–55 A |
| X4 | 347 [13.7] | 330 [13.0] | 378 [14.9] | 593 [23.3] | see drawing | 66–82 A |
| X5 | 351 [13.8] | 370 [14.6] | 418 [16.5] | 597 [23.5] | 703 [27.7] | 96–133 A |
| X6 | 425 [16.7] | 390 [15.4] | 438 [17.2] | 617 [24.3] | 723 [28.5] | 171–204 A |
| X7 | 451 [17.8] | 420 [16.5] | 464 [18.3] | 804 [31.7] | 993 [39.1] | 251–304 A (5 %) 251–438 A (10 %) |
| X8 | 513.5 [20.2] | 420 [16.5] | 464 [18.3] | 804 [31.7] | 993 [39.1] | 352–480 A (5 %) 480 A (10 %) |
Dimensions in mm [in]. Mounting feet and hole patterns: see the frame drawing supplied with each selection.
Specifications
Manufacturer
data.
| Type | Passive |
|---|---|
| Load | Six-pulse drive with diode rectifier |
| THDi at full load | < 5 % or < 10 % (two versions) |
| THDi conditions | Matched six-pulse drive, background THDv < 2 %, short-circuit ratio > 66, line unbalance < 1 % |
| True power factor † | 0.85 at 50 % load, 0.99 at 100 % load |
| Efficiency † | > 98 % |
| Overload † | 160 % for 60 s |
| Enclosure | IP20 (IP21 on request) |
| Cooling | Air, fan on one end |
| Ambient, full load | -25 to +45 °C [-13 to +113 °F] |
| Storage | -25 to +70 °C [-13 to +158 °F] |
| Altitude | 0 – 2000 m [0 – 6562 ft] |
| Humidity | 0 – 95 %, non-condensing |
| Over-temperature | 140 °C switch on TA–TB |
Manufacturer data, catalog basis 380–415 V, 50 Hz. † Published for the 480 A, THDi 10 % model.
Designed to address
Current distortion
guidelines.
- ◆IEEE 519
- ◆EN 61000-2-2, EN 61000-2-4
- ◆IEC/EN 61000-3-2, 61000-3-4, 61000-3-12
IEEE 519 limits total demand distortion at the point of common coupling. The THDi above is at the filter input at full load; a system study relates the two.
No tuning on site
Wire it in and energize. No adjustment at start-up and no routine maintenance.
One filter, several drives
A single filter can serve more than one drive.
Capacitor disconnect
Optional terminals let a relay output on the drive switch the trap capacitors out.
Thermal contact
TA–TB opens on over-temperature and can stop the drive.
Wiring
Terminals.
| L1, L2, L3 | Mains input |
|---|---|
| L1', L2', L3' | Output to the drive |
| A1 B1 C1 / A2 B2 C2 | Optional capacitor disconnect, switched by a contactor driven from the drive relay |
| TA, TB | Temperature switch, wired to the drive (for example to a coast-to-stop input) |
| PE | Protective earth |
Send us the drive.
Drive rating, input current, voltage and how many. We'll come back with a filter selection.
