Outdoor filters
Outdoor
harmonic filters.
Passive filters for six-pulse drives that lie flat and cool themselves with fans, so they fit low, warm spaces where an upright filter can’t go, including under the chiller they serve.
- Rated current
- 400 A or 900 A
- THDi
- 5 % at nominal load
- Height
- 744.5 mm [29.31 in]
Mounting and cooling
Horizontal,
with forced air.
Most passive harmonic filters stand upright and shed their heat by natural convection, which takes height and cool surrounding air. These lie flat and move their own air with fans, so they go into low-clearance, warm locations: under a chiller, in a rooftop equipment yard, beside the equipment they serve.
Horizontal mounting
The cabinet lies flat on two base rails and is 744.5 mm [29.31 in] tall, low enough to go under a chiller.
Forced-air cooling
Fans under the top cover, switched by a 75 °C thermostat, carry the heat out. Cooling doesn’t depend on enclosure height or a chimney effect.
Warm locations
Rated for ambient from -25 to +45 °C [-13 to +113 °F], with a 160 °C over-temperature contact for the drive’s interlock.
Selection
Select a rating.
Pick the filter whose rated current covers the drive’s input current at full load.
| Model | Current | Motor load * | Power loss | Length | Slot centres | With conduit box |
|---|---|---|---|---|---|---|
| SSS-HF480-400 | 400 A | 280 kW [375 hp] | 1415 W [4,828 BTU/h] | 1200 mm [47.24 in] | 1040 x 670 mm | 1454.8 mm [57.28 in] |
| SSS-HF480-900 | 900 A | 630 kW [845 hp] | 3183 W [10,860 BTU/h] | 2000 mm [78.74 in] | 1840 x 670 mm | 2254.8 mm [88.77 in] |
* Nominal motor load; IE2 motor efficiency and inverter efficiency > 95 % assumed. Width 800 mm [31.50 in] and height 744.5 mm [29.31 in] for both; lengths are over the top cover; cabinet body 1100 x 720 mm (400 A) and 1900 x 720 mm (900 A).
400 A · 480 V · 60 Hz
SSS-HF480-400
280 kW [375 hp] nominal motor load, THDi 5 % at nominal load.

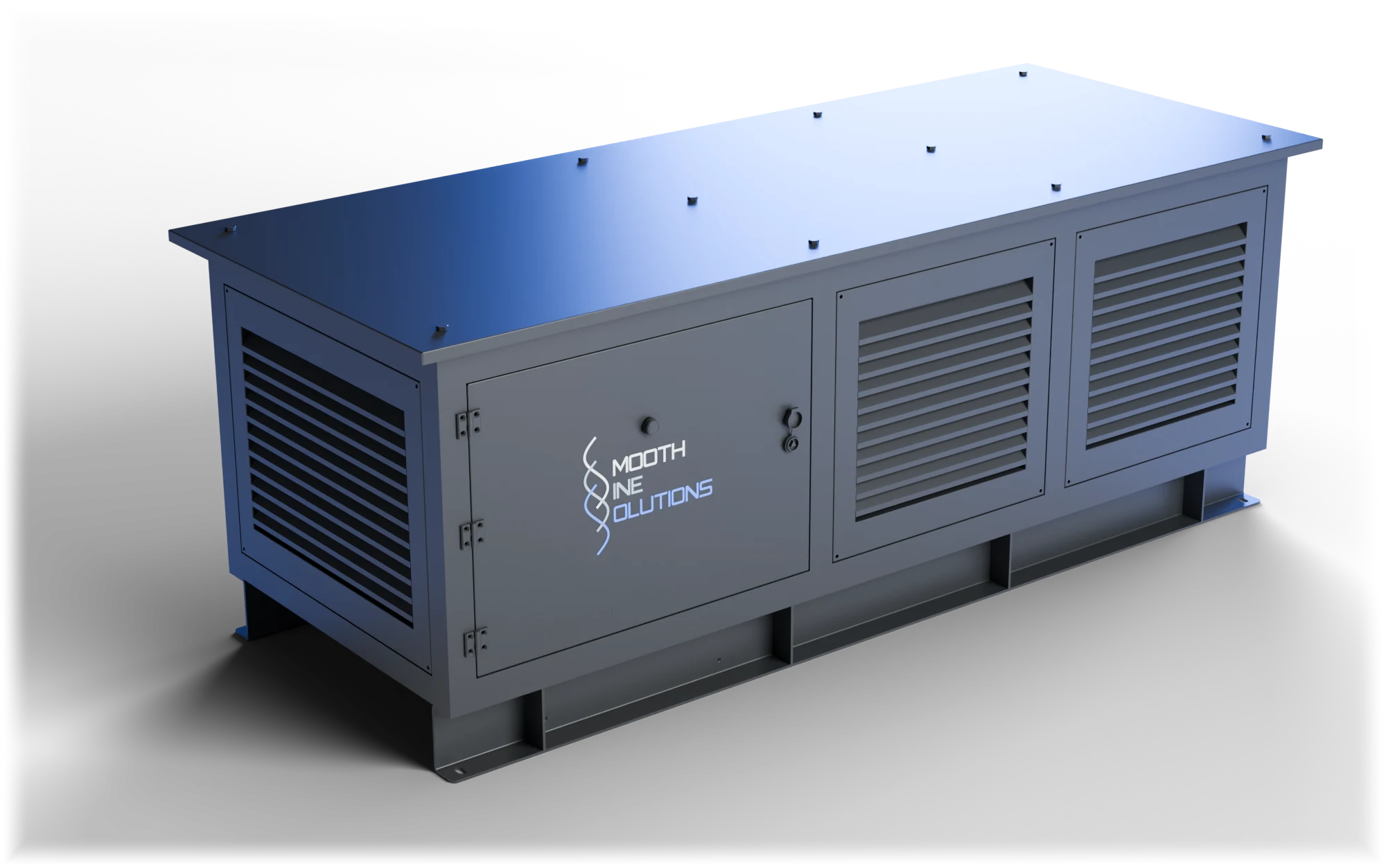

900 A · 480 V · 60 Hz
SSS-HF480-900
630 kW [845 hp] nominal motor load, THDi 5 % at nominal load.
Cabinets drawn to the same scale.
Electrical
Common ratings.
| Type | 3-phase passive line harmonic filter |
|---|---|
| Rated voltage | 480 V ±10 %, 3-phase |
| Frequency | 60 Hz |
| Load | Symmetrical load of a converter with an uncontrolled six-pulse (B6) rectifier |
| THDi | 5 % at nominal load |
| Supply | EN 61000-2-4 Class III |
| Overload | 150 % for 60 s, once per hour |
| Test voltage | 3.0 kV |
| Insulation class | H |
Common to both ratings. Rated current, motor load and power loss: selection table above.
Environment
Enclosure.
| Enclosure | IP54, with the louvered end panel |
|---|---|
| Ambient | -25 to +45 °C [-13 to +113 °F] |
| Temperature rise | ≤ 100 K [180 °F rise] |
| Cooling | Forced air; fans switched by a 75 °C thermostat |
| Over-temperature | TA–TB contact, opens at 160 °C |
| Standards (manufacturer declaration) | EN 61558-1, EN 61558-2-20 |
Control terminals
| L1 L2 L3 | Line input, copper bar |
|---|---|
| L1' L2' L3' | Load output to the drive, copper bar |
| A1 – A2 | Trap-circuit enable: link or dry contact. At line potential; wiring and contact rated for the 480 V system |
| TA – TB | Over-temperature contact, NC |
Performance
Across the load range.

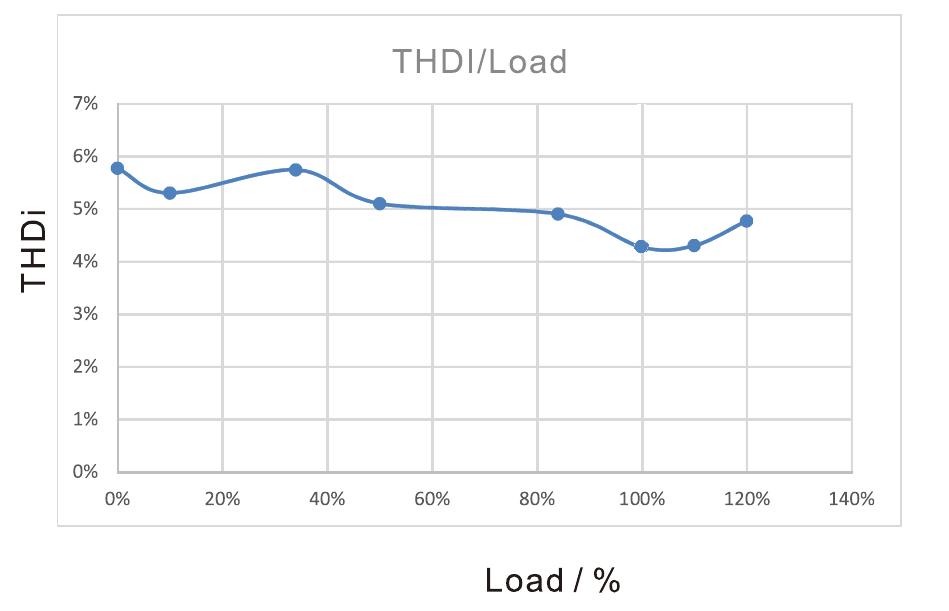

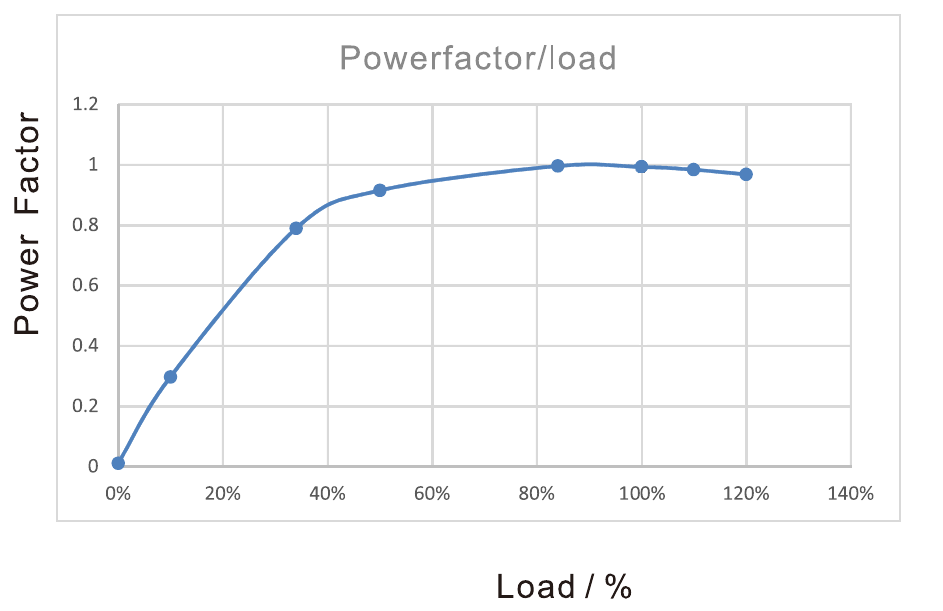

Typical input THDi and power factor against load, where load is the DC-link power of the drive and 100 % is nominal load.
Both ratings. Typical values; they vary with material and production tolerances.
Cabinet
Dimensions.
- Width
- 800 mm [31.50 in]
- Height
- 744.5 mm [29.31 in]
Same cross-section for both ratings; lengths, cabinet body and anchor-slot centres are in the selection table. Cabinet body 720 mm wide. Two base rails 120 mm [4.72 in] high, four anchor slots 15 x 25 mm. Hinged service door on one long side. Specified with no floor or bottom penetrations; cable entry through the conduit box.

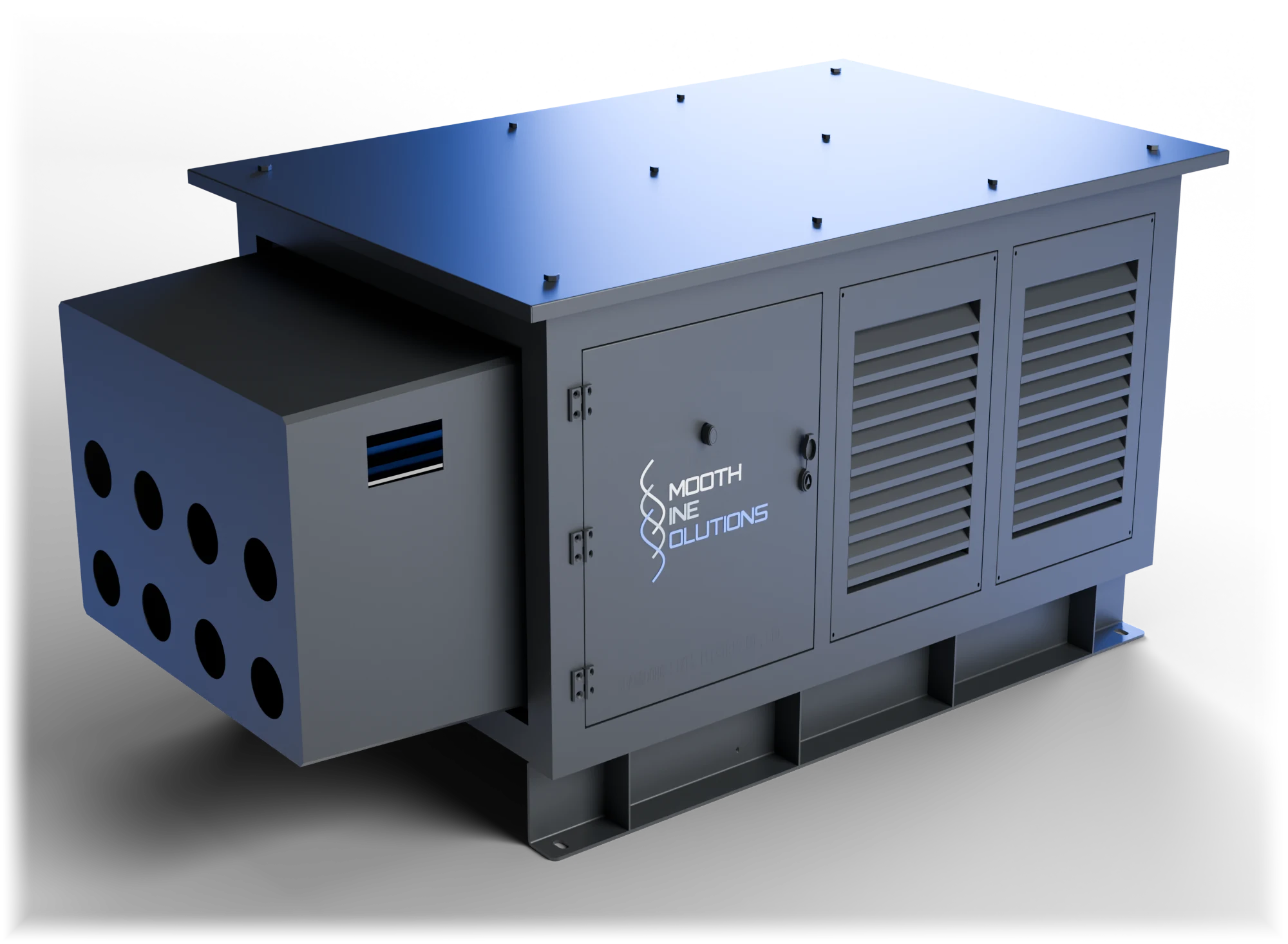

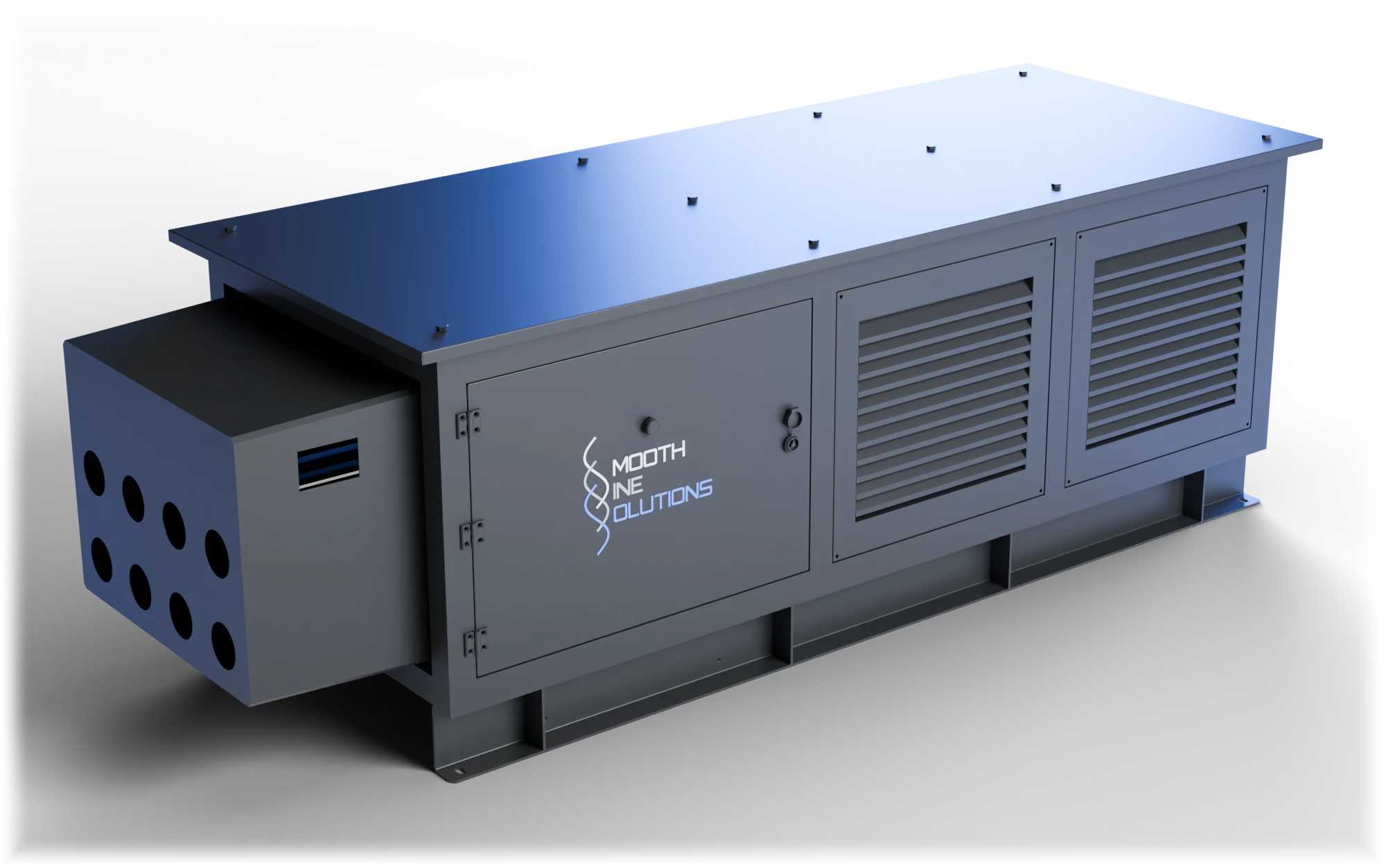

Option: conduit box
All cable entry
through one end.
A box that replaces the louvered panel at the door-hinge end and bolts into the existing panel pocket. Enclosure rating and cooling with the box fitted are being confirmed with the manufacturer.

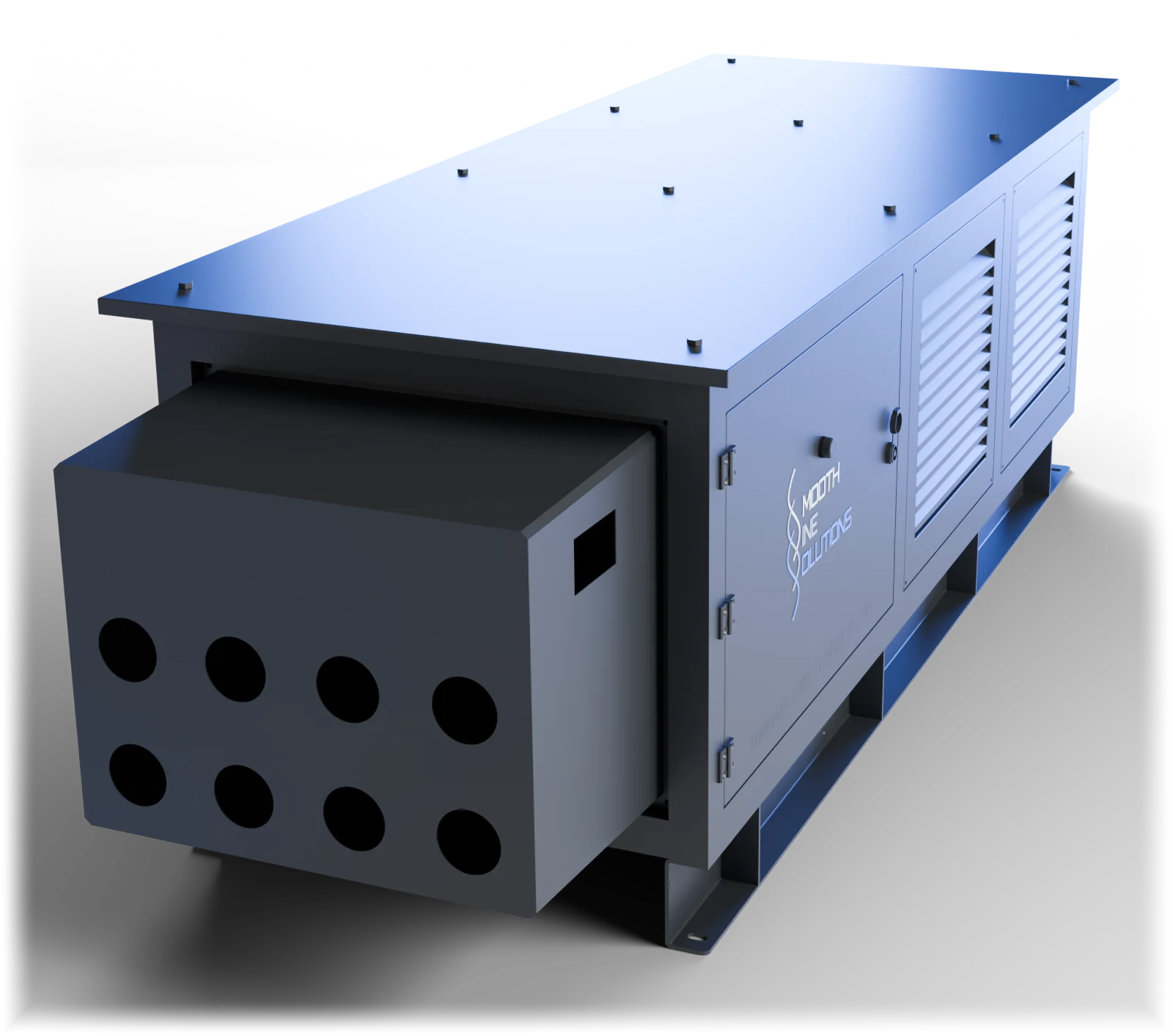

- ◆Eight holes in the end plate for 2-1/2 in liquidtight flexible conduit connectors
- ◆Projects 304.8 mm [12.00 in]; same box on both ratings. Overall lengths with the box: selection table
Send us the drive.
Drive rating, input current, voltage and how many. We'll come back with a filter selection.
